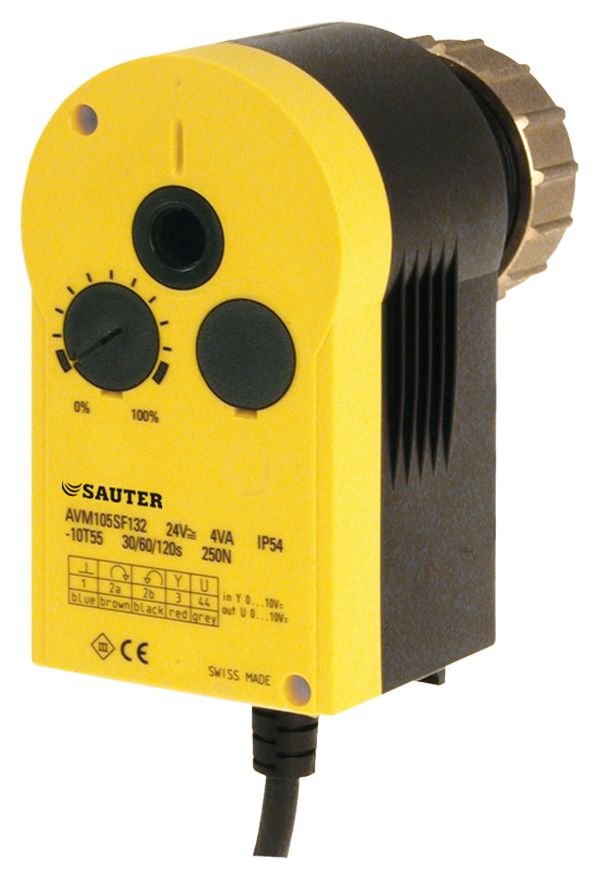

Valve actuator with SAUTER Universal Technology (SUT)
AVM 105S, 115S
How energy efficiency is improved
Automatic adaptation to valve, precision activation and high energy efficiency with minimal operating noise
Jellemzők
-
Activation of 2-way and 3-way valves of the VUN/BUN, VUD/BUD and VUE/BUE series
-
For controllers with a switching (2- and 3-point) or continuous (0…10 V) output
-
Stepping motor with SAUTER Universal Technology (SUT) electronic control unit and electronic, force-dependent cut-off
-
Automatic recognition of applied control signal (continuous or switched)
-
Coding switches for selecting characteristic and running time
-
Type of characteristic (linear/equal-percentage) can be set on the actuator
-
Automatic adaptation to valve stroke
-
Maintenance-free gearbox
-
Gear unit can be disengaged in order to position the valve by hand (hexagon key provided)
-
Connection with valve spindle performed automatically after control voltage is applied
-
Brass cap nut for fitting the valve
-
Fitting vertically upright to horizontal, not suspended
