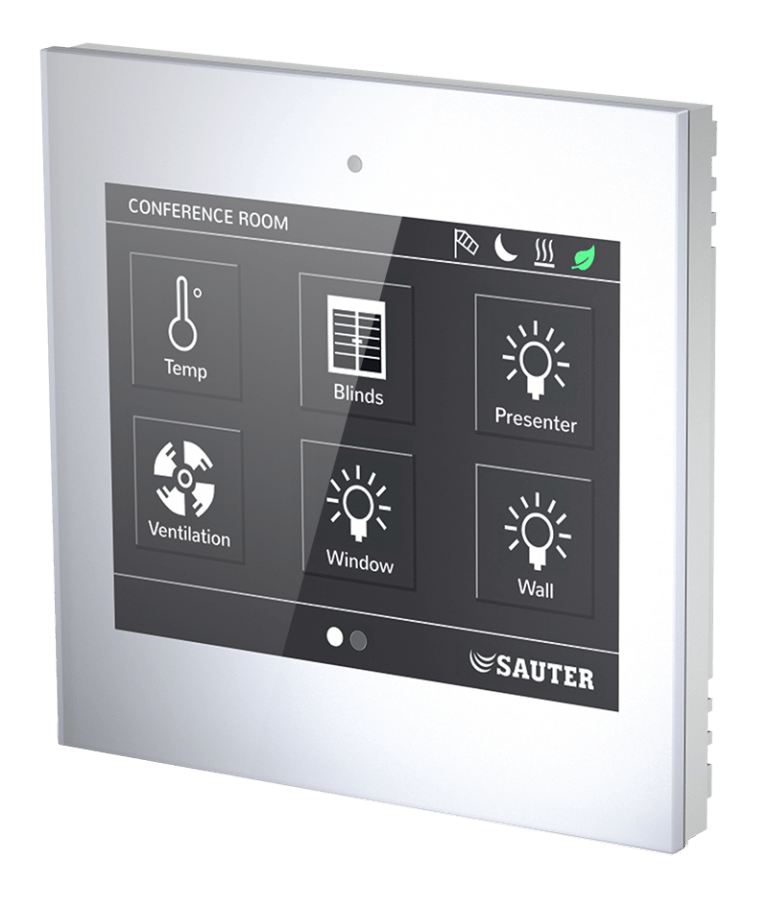

Touch room operating unit, ecoUnit365
EY-RU 365
How energy efficiency is improved
Intuitive, local operation of room automation for optimum room climate, light and sunshade. The touchscreen shows users the correct room information at any time from the various application areas.
Jellemzők
-
Part of the SAUTER EY-modulo 5 system family
-
High quality room operating unit with touch operation and tile display
-
3.5″ TFT colour display, 320×240 pixels
-
Scratch-resistant, capacitive touch interface
-
Navigation of up to 6 pages with up to 6 functions (tiles) each
-
Intuitive operation for 4 predefined functions (temperature, lights, blinds and fans)
-
Up to 12 setpoints can be defined as a reference for BACnet objects
-
Display of the energy efficiency function (“ECO 10”)
-
Mode and symbol displays, e.g. heating/cooling
-
Audio feedback when pressed
-
24 V~/= power supply
-
SLC/RS-485 communicative interface for ecos 5
-
Can be located up to 500 m from the automation station
-
6 digital inputs for connecting presence detector, door/window contacts, digital contact directly
-
Configuration with CASE Suite (CASE Engine “EY-RU365 module configuration”, RU_TOUCH module)
-
Optional: Bluetooth 4.0 LE for using a BT app on a smartphone
