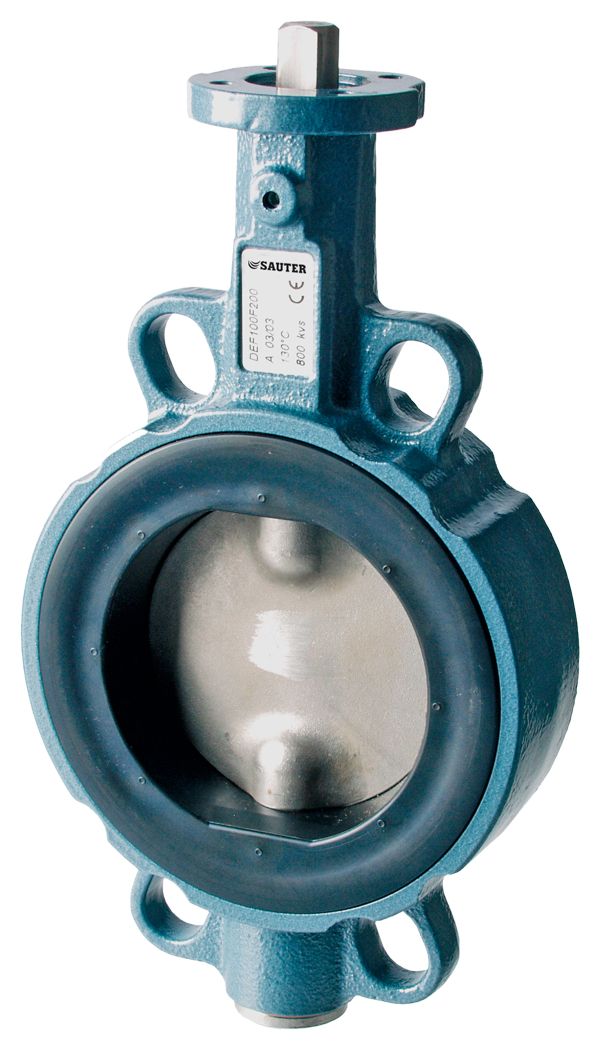

Tight-sealing butterfly valve, PN 16
DEF
How energy efficiency is improved
Intelligent collar design for working without loss through leakage
Jellemzők
-
For cutting off and regulating water and low-pressure steam up to 110 °C
-
Butterfly valve with 3-way brass bearing bush as spindle bearing
-
Fits PN 6, PN 10 and PN 16 flanges
-
Can be combined with motorised actuators of the ADM 322 and A44W type or damper actuators with spring return of the ASM 124, 134 and ASF 122, 123 type
-
Damper body made of grey cast iron
-
Collar made of ethylene-propylene rubber
-
Butterfly disc made of stainless steel
-
Spindle made of stainless steel with two O-rings
Adatlapokat
Szerelési útmutató
Nyilatkozat az anyagokról és a környezetről
DEF: Wafer butterfly valve, tightly-closing, PN 16
pdf : 2 MB
pdf
0378113 (ASF, DEF)
pdf : 149 KB
pdf
ADM 322
pdf : 1 MB
pdf
378110, 378111, 378112 (A44W , DEF)
pdf : 578 KB
pdf
0372455 -> ASM124,134
pdf : 1 MB
pdf
DEF
pdf : 352 KB
pdf
DEF 025...200: Wafer butterfly valve, tightly closing, PN16
PDF : 89 KB
PDF
Poster valves and actuators - 2023
pdf : 1 MB
pdf
Valves and actuators
pdf : 3 MB
pdf
