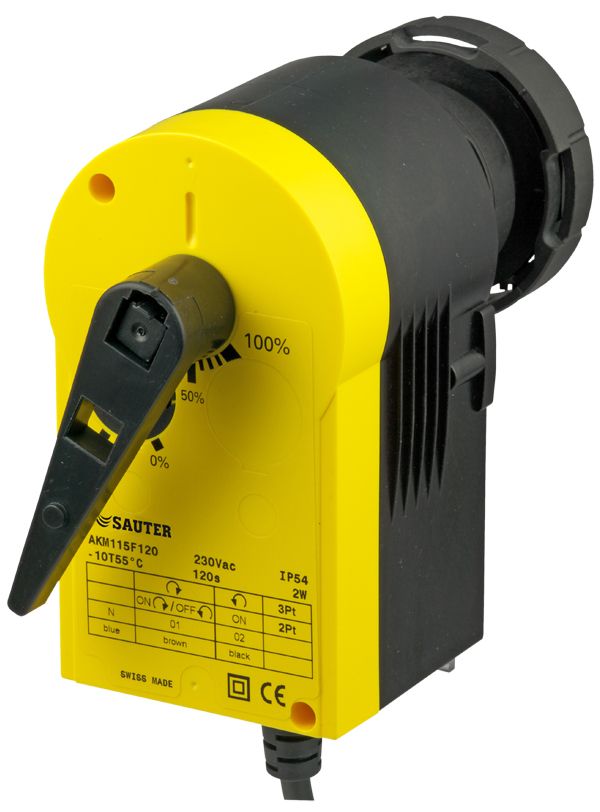

Rotary actuator for ball valve
AKM 105, 115
How energy efficiency is improved
Torque-dependent cut-off facility for efficient usage of energy
Jellemzők
-
For operating 2- and 3-way ball valves VKR, VKRA, BKR, BKRA, VKAI, VKAA, BKLI, BKTI, BKTA, (AKM115) and 6-way ball valve B2KL
-
For controllers with a switching output (2-/3-point control)
-
Assembly with ball valves without the use of tools
-
Synchronous motor with electronic activation and cut-out
-
Maintenance-free gear unit
-
Gear unit can be disengaged in order to position the ball valve manually (using the lever)
-
Bracket and bayonet ring made of glass-fibre-reinforced plastic for fitting onto ball valve
-
Fitting vertically upright to horizontal, not suspended
Adatlapokat
Szerelési útmutató
Nyilatkozat az anyagokról és a környezetről
AKM 105, 115: Rotary drive for ball valve
pdf : 2 MB
pdf
0510240011
pdf : 255 KB
pdf
0510420001; AKM105, AKM4115, VKR, BKR
pdf : 538 KB
pdf
0372459100, 0372459102 (ASM1.5-ASM1.4, AVM1.5-AVM1.4, AKM1.5)
pdf : 1 MB
pdf
0510480001; 0510480002
pdf : 801 KB
pdf
AKM 105; AKM 115
pdf : 2 MB
pdf
AKM 105, 115: Rotary drive for ball valve
PDF : 36 KB
PDF
Poster valves and actuators - 2023
pdf : 1 MB
pdf
Valves and actuators
pdf : 3 MB
pdf
