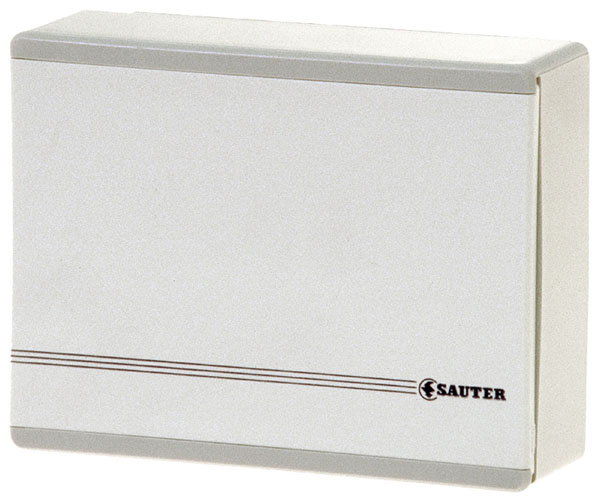

Room-temperature transducer
TSUP
How energy efficiency is improved
Accurate recording of room temperature in pneumatic installations for optimal control of HVAC systems.
Areas of application
Continuous pneumatic measurement and/or control of room temperature in combination with pneumatic control equipment (Centair).
Properties
Technical description
Accurate recording of room temperature in pneumatic installations for optimal control of HVAC systems.
Areas of application
Continuous pneumatic measurement and/or control of room temperature in combination with pneumatic control equipment (Centair).
Properties
- Part of the Centair family of systems
- Conversion of room temperature into a standard 0.2 to 1.0 bar pneumatic signal
- Lid in thermoplastic with grey/white frame (RAL 9002) and pure-white front panel (RAL 9010)
- Compressed-air connection on plug nipple for flexible plastic hose int. ø 4 mm
- Complies with directive 97/23/EC Art. 3.3 on pressure equipment
Technical description
- Supply pressure 1.3 bar ± 0.1
- Nozzle/ball system
- Linearity of output signal <2%
