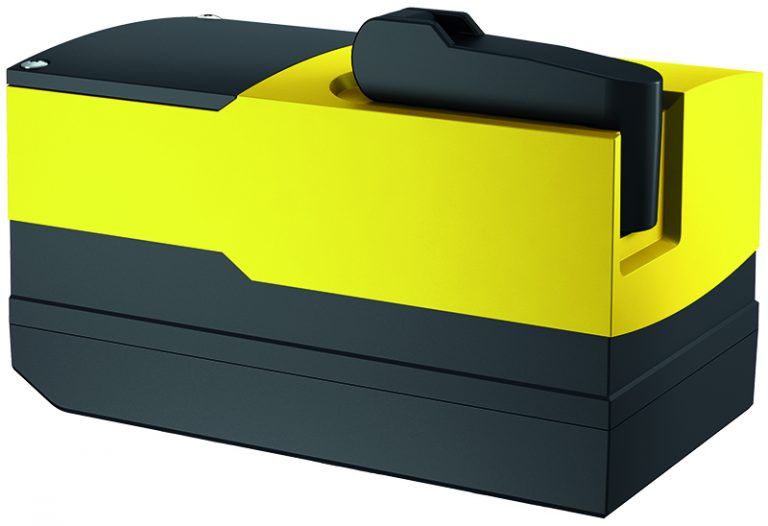

Retrofit actuator
AVM 322-R
How energy efficiency is improved
Automatic adaptation to valve, optimal operator convenience, precision activation and high energy efficiency with minimal operating noise
Jellemzők
-
In ventilation and air conditioning units For actuation of 2- and 3-way valves
-
For controllers with a switching output (2-point or 3-point control)
-
Synchronous motor with electronic control unit and load-dependent cut-off
-
Direction of operation and positioning time can be set using coding switches
-
Crank handle for external manual adjustment with motor cut-off
-
Low operating noise
-
Simple assembly onto valve; spindle is automatically connected after nominal voltage is applied
-
Numerous adapters enable the unit to be fitted onto non-SAUTER valves
-
Electrical parallel operation of five actuators
-
Three-piece housing made of flame-retardant yellow/black plastic and seals with type of protection IP54
-
Maintenance-free gearbox made of plastic; threaded spindle and gearbox base-plates made of steel
-
Patented actuator-valve coupling
-
Electrical connections (max. 1.5 mm²) with screw terminals
-
Two break-out cable inlets for metric cable gland made of plastic M20 × 1.5
-
Fitting position vertically upright to horizontal, not suspended
