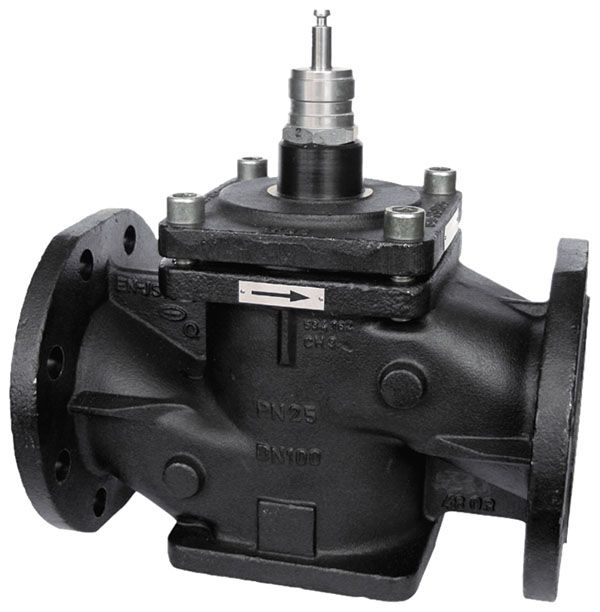

Pressure-relieved 2-way flanged valve, PN 25 (pn.)
VUP
How energy efficiency is improved
Efficiency means precise and reliable control
Jellemzők
-
Continuous control of cold and hot water in closed circuits, and of steam
-
In combination with AVP 242 to 244 actuators as control unit.
-
Water quality as per VDI 2035
-
Not suitable for drinking water or potentially explosive atmospheres
-
Valve with flange connection as per EN 1092-2, seal form B
-
Regulating valve, free of silicone grease, with pressure compensation, galvanised and painted black
-
The valve is closed when the spindle is moved in
-
Valve body made of ductile cast iron
-
Valve seat, plug and spindle made of stainless steel
-
Closing procedure only against the pressure
-
Maintenance-free stuffing box in brass with spring-loaded PTFE-FKM-PTFE washer
Adatlapokat
Szerelési útmutató
Szolgáltatási dokumentációk
Nyilatkozat az anyagokról és a környezetről
VUP: Pressure-relieved through flanged valve, PN 25
pdf : 2 MB
pdf
0378356, 0378357 (VUP)
pdf : 6 MB
pdf
AVP243F . . ., AVP244F . . .
pdf : 5 MB
pdf
0372336 (AVM2.., AVF2.., AVN2..)
pdf : 769 KB
pdf
0378284 (VU . , BU . ,)
pdf : 499 KB
pdf
AVP242F021
pdf : 4 MB
pdf
VUP, PN25
pdf : 1 MB
pdf
VUP
PDF : 140 KB
PDF
VUP040...150
PDF : 92 KB
PDF
