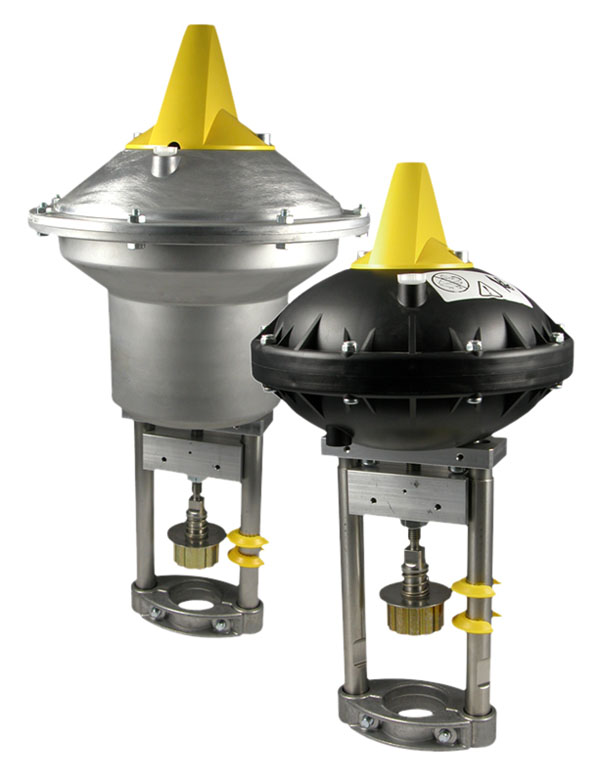

Pneumatic valve actuators
AVP 242...244
How energy efficiency is improved
Precise valve activation with only the slightest air requirement
Jellemzők
-
Activation of 2-way and 3-way valves of the VUD/BUD, VQD/BQD, VUE/BUE, VQE/BQE, VUG/BUG, VUS/BUS and VUP series for continuous control facilities or for open/close control
-
Silicone-free, therefore usable in many applications
-
Long-term stable NBR diaphragm
-
The direction of operation can be reversed by fitting the unit to the bracket the opposite way round
-
Stroke indicator enables the position of the actuator to be determined quickly
-
Compressed-air connection with Rp ⅛” female thread
-
Patented actuator–valve coupling enables the two units to be connected quickly and easily
Adatlapokat
Szerelési útmutató
Nyilatkozat az anyagokról és a környezetről
AVP 242...244: Pneumatic valve drives
pdf : 3 MB
pdf
AVP243F . . ., AVP244F . . .
pdf : 5 MB
pdf
0274521, 0274730 (AVP242...244)
pdf : 1 MB
pdf
AVP242F001 (VU . , BU . )
pdf : 3 MB
pdf
AVP242F021
pdf : 4 MB
pdf
AVP242...244
PDF : 92 KB
PDF
Pneumatic room pressure control
pdf : 361 KB
pdf
