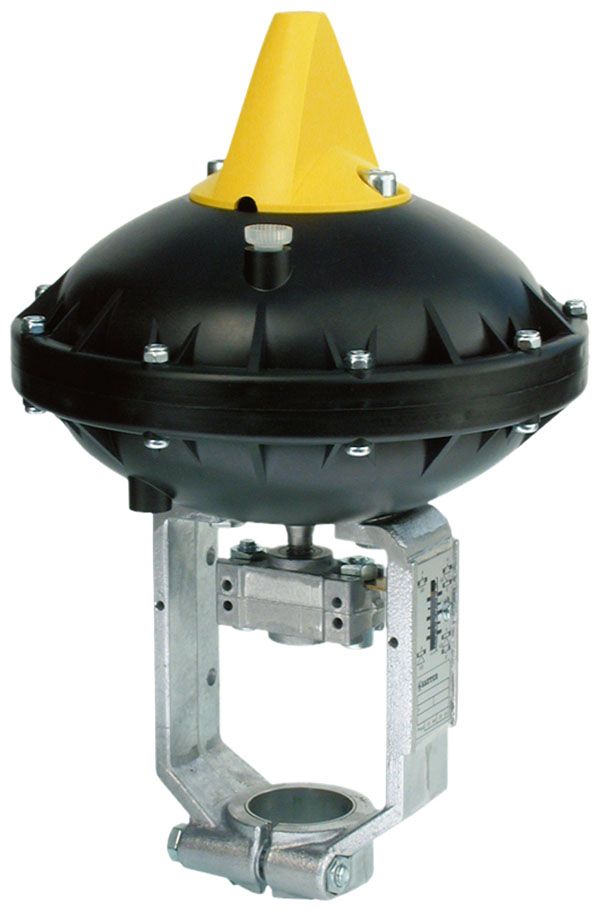

Pneumatic valve actuator
AVP 142
How energy efficiency is improved
Precise valve activation with only the slightest air requirement
Jellemzők
-
Actuation of 2-way and 3-way valves of the V6R/B6R series for continuous control facilities or for OPEN/CLOSE control
-
Silicone-free, therefore usable in many applications
-
Long-term stable NBR diaphragm
-
The direction of operation can be reversed by fitting drive unit to the fixing bracket the opposite way round
-
Stroke indicator enables the position of the actuator to be determined quickly
-
Compressed-air connection with Rp ⅛” female thread
Adatlapokat
Szerelési útmutató
Nyilatkozat az anyagokról és a környezetről
AVP 142: Pneumatic valve drive
pdf : 2 MB
pdf
XSP31G (AV42...45P)
pdf : 331 KB
pdf
AVP142 (V6 . , B6 . ,VX . ,BX . )
pdf : 688 KB
pdf
0274521, 0274730 (AVP242...244)
pdf : 1 MB
pdf
AVP142
PDF : 89 KB
PDF
Pneumatic room pressure control
pdf : 361 KB
pdf
