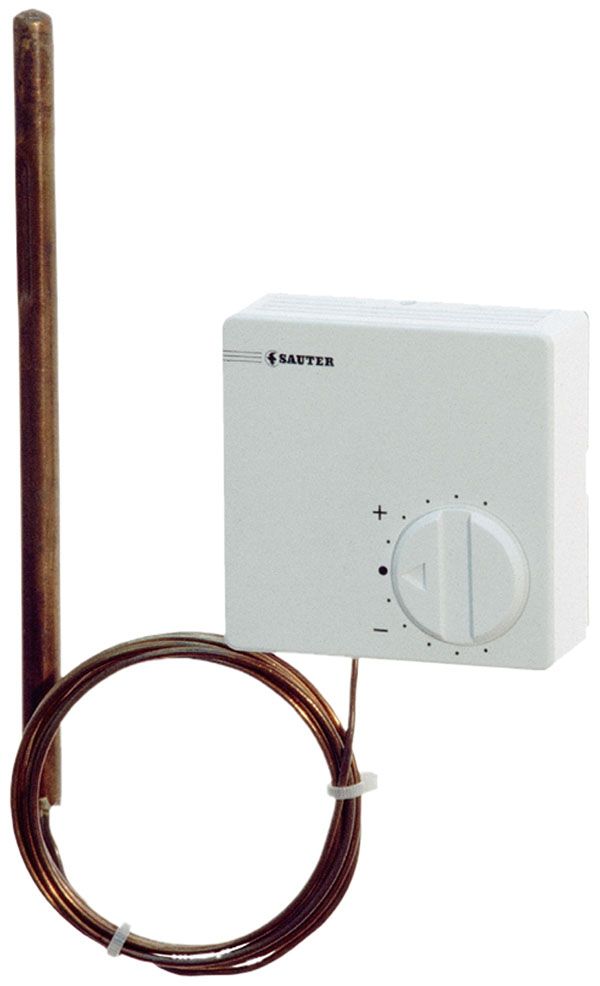

Pneum. duct-temperature controller
TKP 80, 81
How energy efficiency is improved
Enables energy-efficient control of the duct temperature in pneumatic installations. The duct temperature can be set precisely with the setpoint adjuster.
Areas of application
Continuous temperature measurement and control, e.g. in ducting in air-conditioning systems. Activation of volume flow controllers or unit valves.
Properties
Technical description
Enables energy-efficient control of the duct temperature in pneumatic installations. The duct temperature can be set precisely with the setpoint adjuster.
Areas of application
Continuous temperature measurement and control, e.g. in ducting in air-conditioning systems. Activation of volume flow controllers or unit valves.
Properties
- Oil-filled external transducer for detecting the duct temperature
- Transducer can be distanced up to 1.5 m away
- P control characteristic
- Housing 72 x 72 mm in pure-white thermoplastic
- Setpoint adjuster with +/- scale and adjustable stops for setpoint limiting
- Complies with directive 97/23/EC Art. 3.3 on pressure equipment
Technical description
- Supply pressure 1.3 bar ± 0.1
- Time constant at 0.5 m/s air velocity approx. 2.5 min.
- Output pressure 0.2 - 1.0 bar
- P range Xp approx. 2 K
- Linearity 2%
Adatlapokat
Szerelési útmutató
TKP, TKFP, TKSP: Pneumatic duct-temperature controllers
PDF : 216 KB
PDF
TKP80.
pdf : 207 KB
pdf
TKP81.
pdf : 203 KB
pdf
TKKP81.
pdf : 218 KB
pdf
