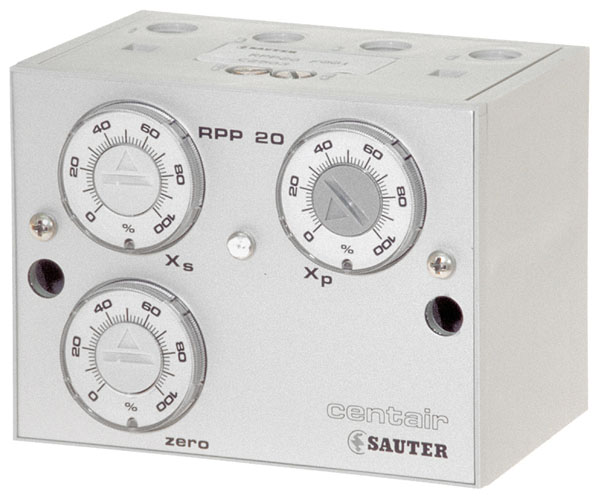

P-controller
RPP 20
How energy efficiency is improved
Enables the implementation of individually optimised controls for maximum efficiency in pneumatic installations.
Areas of application
Pneumatic control of temperature, pressure, differential pressure, humidity and flow rate in combination with appropriate transducer.
Properties
Technical description
Enables the implementation of individually optimised controls for maximum efficiency in pneumatic installations.
Areas of application
Pneumatic control of temperature, pressure, differential pressure, humidity and flow rate in combination with appropriate transducer.
Properties
- P fixed-value controller for universal use
- Application as switching relay (On/Off controller) possible
- Controller front panel is printed with circuit diagram for rapid identification of function
- Thermoplastic housing suitable for wall or top-hat rail mounting
- Compressed-air connections with Rp 1/8" female thread
- Complies with directive 97/23/EC Art. 3.3 on pressure equipment
Technical description
- Supply pressure 1.3 bar ± 0.1
- Easily accessible adjusters for XS (setpoint), XP (P range), zero point
- Inputs for:
- actual value
- remote setpoint adjustment
- Outputs for:
- output pressure for damper drive
Adatlapokat
Szerelési útmutató
Szolgáltatási dokumentációk
RPP: P-controller
pdf : 145 KB
pdf
RPP20
pdf : 9 MB
pdf
Pneum. Geräte
pdf : 1 MB
pdf
Centair. The pneumatic universal controller system for air-conditioning and heating systems
pdf : 405 KB
pdf
Pneumatic room pressure control
pdf : 361 KB
pdf
