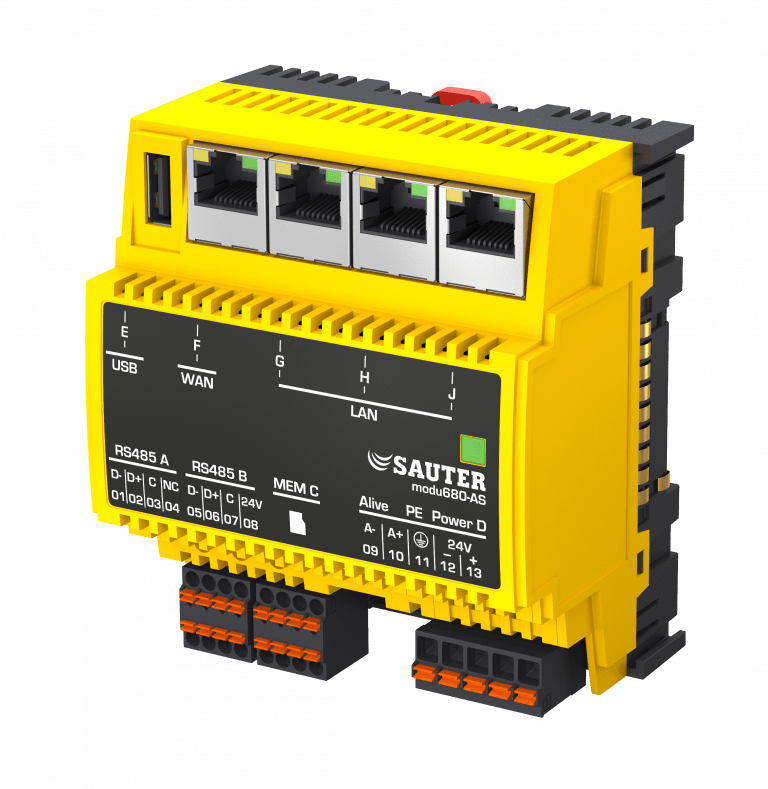

Modular BACnet automation station and web server, modu680-AS
EY6AS80
Jellemzők
-
Part of the SAUTER modulo 6 system family
-
Modular automation station, expandable with I/O modules and communication modules
-
Regulation, control, monitoring and optimisation of operational systems in HVAC engineering
-
Locally expandable with up to 24 modules via the SAUTER Extension Bus
-
Can be locally equipped with ecoLink I/O modules and ASV actuators via SLC interface
-
RS-485 interface for field bus integration (Modbus/RTU/ASCII)
-
Four RJ45 connections for two separate IP networks (OT/IT; Operational/Information Technology). Three connections switched for daisy chain
-
BACnet/IP with device profile B-BC (EN ISO 16484‑5)
-
AMEV AS-B profile
-
With function expansion:
-
BACnet/SC (encrypted communication)
-
MQTT interface (MQTT Broker/Client)
-
REST API interface
-
-
Integrated web server for local commissioning, visualisation and operation
-
User administration for identification, authentication and access control
-
Encryption of communication with TLS
-
Bluetooth interface for mobile commissioning and maintenance
-
Programming/parameterisation via PC using CASE Suite (based on IEC 61131-3)
-
Control libraries
-
Time and calendar function
-
Predictive control based on meteorological forecast data
-
Data recording on removable media (microSD card)
-
User administration and user identification (web server)
-
Alive signal output pulsed
I/O module for expanding the modulo 6 automation system
SAUTER modulo 6: BACnet conformance certificate for all automation stations
