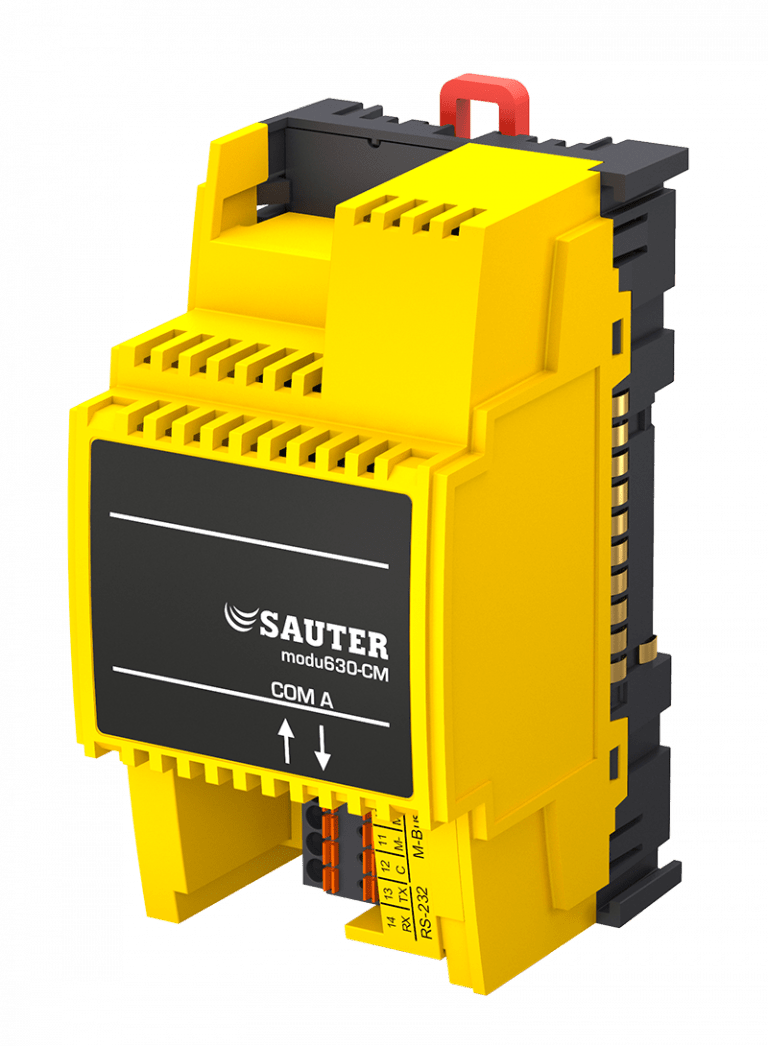

M-Bus communication module, modu630‑CM
EY6CM30
Jellemzők
-
Part of the SAUTER modulo 6 system family
-
Plug-in element for extending the modu680‑AS and modu660‑AS automation stations or modu612‑LC link coupler
-
Up to five COM modules per automation station
-
M-Bus master with up to four M-Bus communication profiles
-
Connection to M-Bus meter networks for the integration of heat meters, electricity meters etc.
-
2-wire M-Bus network for up to 80 unit loads, electrically isolated
-
2-wire RS-232 connection for point-to-point communication
-
Up to 250 meters and 600 values
-
Integrated tunnelling function for commissioning and monitoring on the modulo 6 stations
