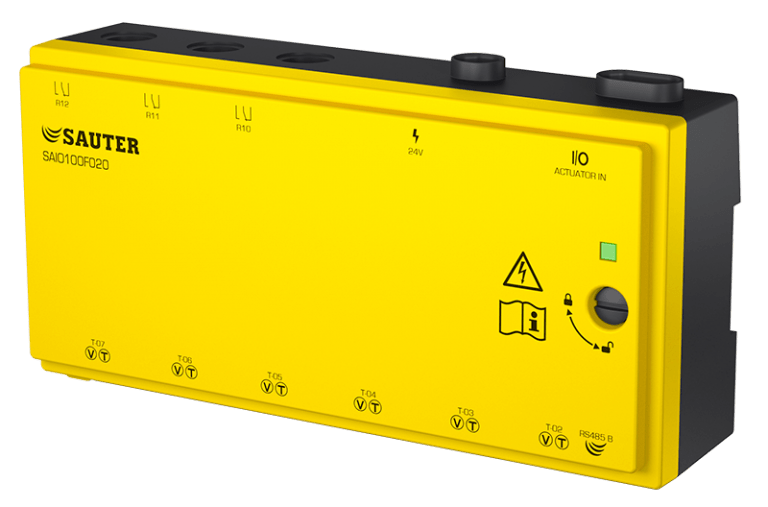

I/O module for smart actuators
SAIO 100
How energy efficiency is improved
Extension of the scope of the smart actuator. Less wiring effort and thus lower fire load
Jellemzők
-
Extends the inputs and outputs of the smart actuator for extensive control tasks
-
Connection of sensors or actuators via five integrated universal inputs and outputs
-
Version with three additional changeover relays available
-
Connection to the smart actuator via plug-in I/O module cable (SLC)
-
Direct connection of a room operating unit
-
Housing according to IP54 enables use without cabinet
-
Separate 24 V power supply for sensors and actuators with power requirement up to 1 A
