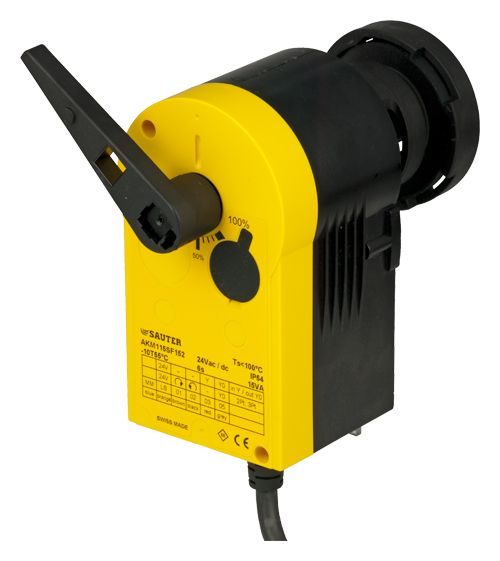

High-speed rotary actuator with SAUTER Universal Technology (SUT) for ball valve
AKM 115S F152
How energy efficiency is improved
Automatic adaptation to ball valve, electronic cut-off, precise activation and high energy efficiency with minimal operating noise
Jellemzők
-
For operating 2- and 3-way ball valves VKR, VKRA, BKR, BKRA, VKAI, VKAA, BKLI, BKTI, BKTA and 6-way ball valve B2KL
-
For controllers with constant output (0…10 V/4…20 mA) or switching output (2-/3-point control)
-
Assembly with ball valve without the use of tools
-
Brushless motor with electronic activation and cut-out
-
Intelligent adaptation of rotation angle, incl. feedback adjustment
-
Electronic force-dependent cut-off
-
Direction of rotation selected with DIP switch
-
Pulse length correction in 3-point operation, i.e. internal adjustment of start-up time
-
Gear unit can be disengaged in order to position the ball valve manually (using the lever)
-
Maintenance-free
-
Free configuration using the CASE Drive PC tool
-
Bracket and bayonet ring made of glass-fibre-reinforced plastic for fitting onto ball valve
