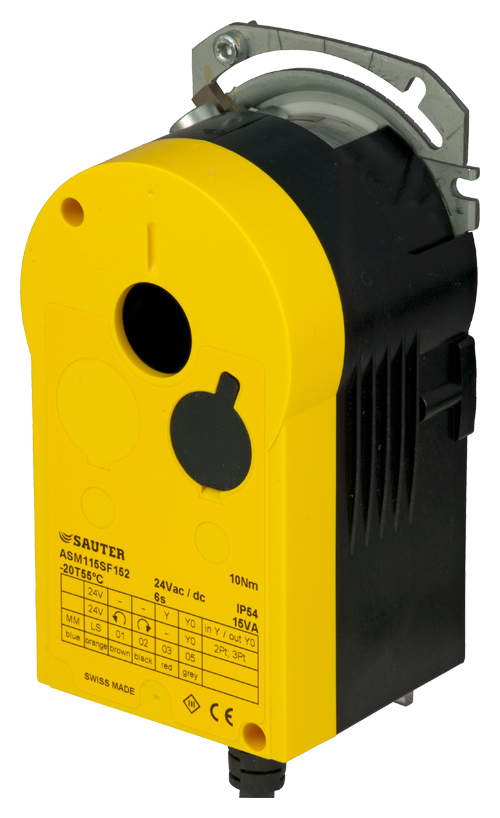

High-speed damper actuator with SAUTER Universal Technology (SUT)
ASM 105S, 115S F152
How energy efficiency is improved
Precise activation and electronic cut-off for efficient usage of energy
Jellemzők
-
For controllers with switching (2- and 3-point) or continuous output (0…10 V)
-
Brushless motor with electronic activation and cut-out
-
Intelligent adaptation of rotation angle
-
Electronic force-dependent cut-off
-
Direction of rotation selected with DIP switch
-
Pulse length correction in 3-point operation, i.e. internal adjustment of start-up time
-
Self-centring spindle adapter
-
Gear unit can be disengaged to position the damper and for manual adjustment
-
Maintenance-free
-
Fitting: Vertically upright to horizontal, not suspended
Adatlapokat
Szerelési útmutató
Nyilatkozat az anyagokról és a környezetről
ASM105S, 115S: Fast-action damper drive with SAUTER Universal Technology (SUT)
pdf : 922 KB
pdf
ASM1*5SF152
pdf : 461 KB
pdf
ASM105SF152: Damper drive, fast-acting
PDF : 41 KB
PDF
Poster valves and actuators - 2023
pdf : 1 MB
pdf
Valves and actuators
pdf : 3 MB
pdf
