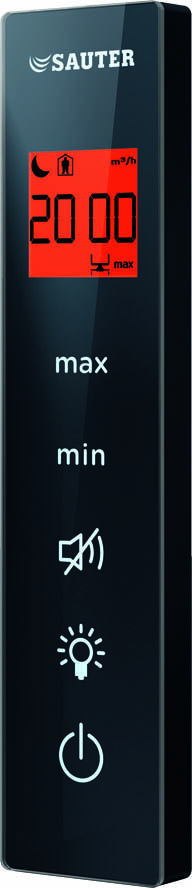

Fume-cupboard indicator and monitor

Measured value display and indication of operating statuses for a range of ambient conditions such as pressure, temperature, relative humidity etc. in combination with an EY‑RC 504/505 room automation station or an ASV 2*5 VAV compact controller

Monitoring fume cupboards as per EN 14175‑2 to check that they are functioning correctly and that the ventilation is operated to provide maximum safety for the laboratory staff

• Indication when the front sash is open > 500 mm

• Switching the fume cupboard lighting on and off

• Up to two function indicators for double-sided fume cupboards

• Indication of day/night change-over

• Audible alarm can be delayed or muted via configuration

Demand-controlled regulation of fume cupboards as per EN 14175‑6 in combination with the ASV 2*5 VAV compact controller

Function indicator with visual and audible notification as per EN 14175‑2

Storage of all defined parameters with protection from power failure

Interface for easy configuration of the connected VAV ASV 2*5

Five freely configurable push-buttons

Chemical-resistance glass surface

Units that can be displayed: m/s, fps, l/s, m3/h, cfm, Pa, °C, °F, %rh, ppm
