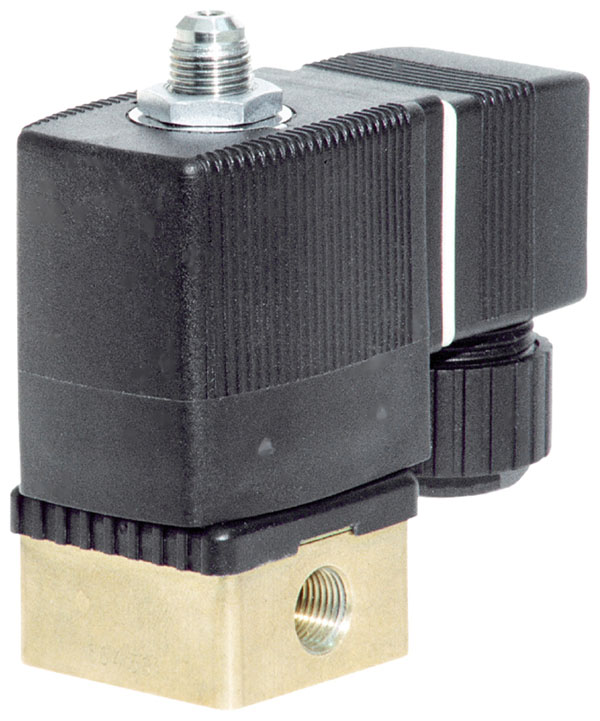

Electropneumatic relay
RUEP
How energy efficiency is improved
The compressed air consumption of systems can be reduced by deliberately switching off pneumatic control devices when they are not used
Jellemzők
-
Electromagnetic change-over valve
-
Valve body made of brass, valve disc with soft seal made of FKM
-
Cable gland for cables Ø 6…7 mm and connecting cables up to 1.5 mm2
-
Compressed air connection on upper part of valve G 1/8″ A, male thread
Adatlapokat
Szerelési útmutató
RUEP: Electro-pneumatic relay
pdf : 2 MB
pdf
RUEP5
pdf : 338 KB
pdf
Pneumatic room pressure control
pdf : 361 KB
pdf
