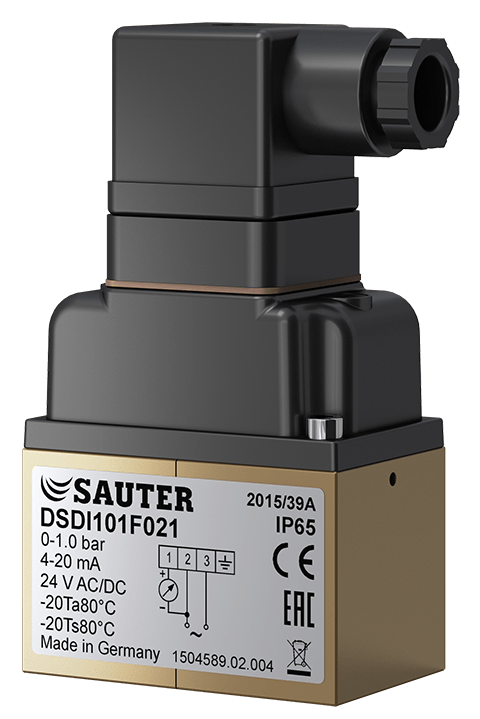

Differential pressure transmitter
DSDU, DSDI
How energy efficiency is improved
Simple conversion of pressure differences to proportional standard signal
Jellemzők
-
For measuring pressure differences in liquids, gases and vapours
-
Sturdy device with ceramic diaphragm
-
For use in filter technology, heating systems etc.
-
Differential pressure measuring range from 0…6 bar
-
Analogue signal 0…10 V or 4…20 mA
-
24 V~/= supply voltage
-
With fitting bracket
-
Standard plug as per DIN EN 175301-803-A
Adatlapokat
Szerelési útmutató
Nyilatkozat az anyagokról és a környezetről
DSDU, DSDI: Differential-pressure transmitter
pdf : 1 MB
pdf
MV DSDU/DSDI
pdf : 2 MB
pdf
MD DSDU, DSDI
PDF : 267 KB
PDF
Richtlinie Fühlermontage
pdf : 9 MB
pdf
Flyer 2-Point Controllers and Sensors
pdf : 1 MB
pdf
