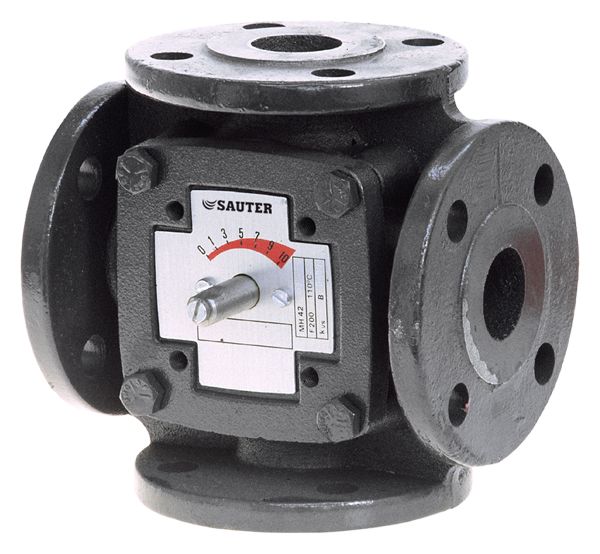

Control valve with flange connection, PN 6
MH32F, MH42F
How energy efficiency is improved
Supply from both sides and the linear characteristic enable energy-efficient working
Areas of use
Continuous control of the supply temperature in heating systems in which a certain loss through leakage is desired.
Jellemzők
-
MH32F: 3-way valves with nominal diameters DN 20…150
-
MH42F: 4-way valves with nominal diameters DN 32…50
-
Can be combined with the ADM 322 and ASM 105, 115, 124 motorised actuators
-
Manual adjustment via lever
-
Body made of grey cast iron; brass gate
-
Spindle made of brass up to DN 25 and stainless steel from DN 32
-
Stuffing box with double O-ring guarantees the tightness of the seal at the spindle
Adatlapokat
Szerelési útmutató
Szolgáltatási dokumentációk
MH32F, MH42F: Flanged mixing valves, PN 6
pdf : 2 MB
pdf
MH32 . ., MH42 . ., (ASM 124, ASM124S)
pdf : 810 KB
pdf
ASM105, 115; ASM105S, 115S(MH32, MH42R)
pdf : 644 KB
pdf
0510390002 ... 0510390005, 0510240013
pdf : 2 MB
pdf
M3R, M4R
pdf : 4 MB
pdf
MH32, MH42
pdf : 583 KB
pdf
Poster valves and actuators - 2023
pdf : 1 MB
pdf
Valves and actuators
pdf : 3 MB
pdf
