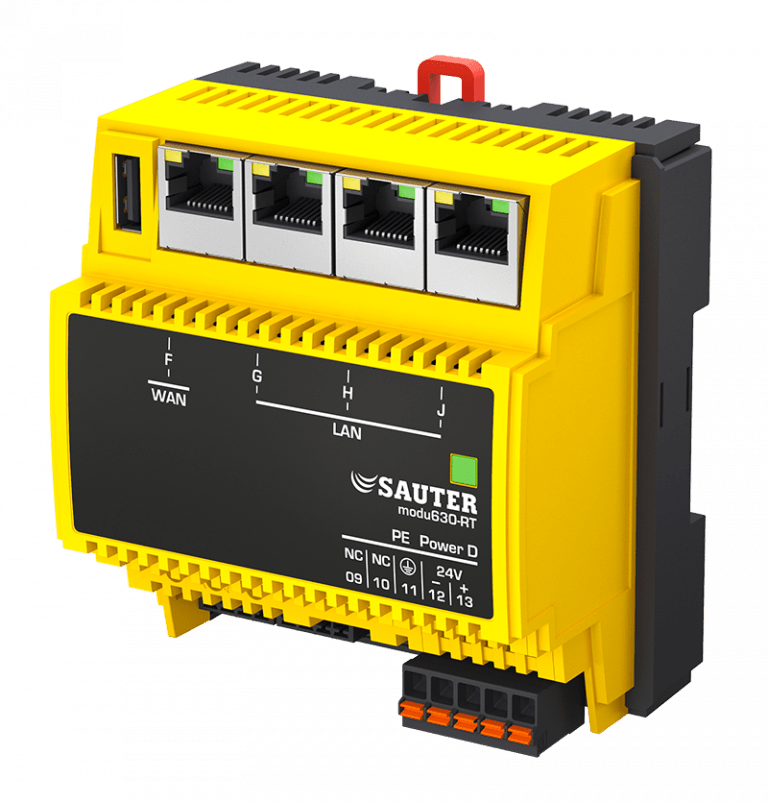

BACnet router and SC hub, B/IP <-> B/SC, modu630-RT
EY6RT30
Jellemzők
-
Part of the SAUTER modulo 6 system family
-
Suitable for use as BACnet router between BACnet networks
-
Suitable for use as BACnet Secure Connect Hub (B/SC-Hub)
-
BACnet profiles: B-RTR, B-SCHUB, B-BBMD
-
BACnet data links: BACnet/IP, BACnet/SC
-
BACnet/IP-BBMD or FD function
-
Four RJ45 connections for two separate IP networks
-
Three connections switched for daisy chain
-
Encryption of communication with TLS 1.3
SAUTER BACnet/SC-Router receives BACnet Conformance Certificate
The BACnet router modu630-RT has been BTL-certified. This certificatio...
16. January 2024
