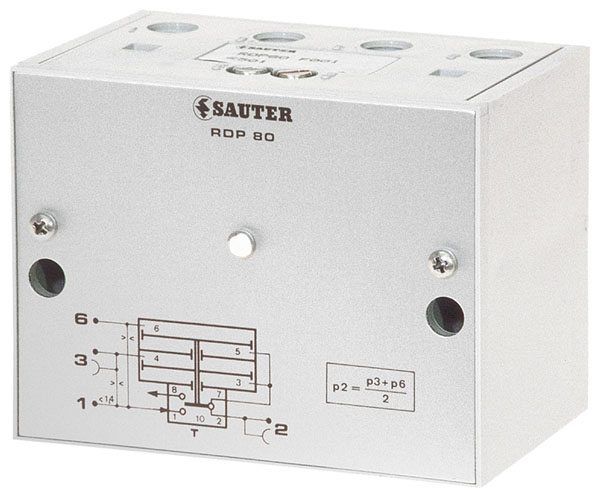

Averaging relay
RDP 80
Areas of application
Formation of the average of two pneumatic input signals in pneumatic control systems.
Properties
Technical description
Formation of the average of two pneumatic input signals in pneumatic control systems.
Properties
- 2 input signals are added together and averaged in the relay
- Controller front panel is printed with circuit diagram for rapid identification of function
- Thermoplastic housing suitable for wall or top-hat rail mounting
- Compressed air connections with Rp 1/8" female thread
- Complies with directive 97/23/EC Art. 3.3 on pressure equipment
Technical description
- Supply pressure 1.3 bar ± 0.1
- 2 input signals
- 1 output signal
