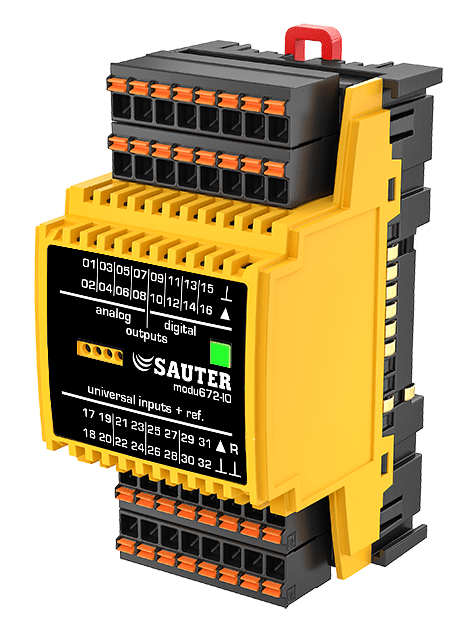

4 × AO, 4 × DO(OC), 4 × UI (DI/CI/AI) I/O module, modu672‑IO

EY6IO72

4 × AO, 4 × DO(OC), 4 × UI (DI/CI/AI) I/O module, modu672‑IO

Jellemzők

  • Part of the SAUTER modulo 6 system family

  • Plug-in element for extending the modu660‑AS and modu680‑AS automation stations and the modu612‑LC IP coupler

  • Activation with a standard signal (0(2)…10 V, 0(4)…20 mA) in operational systems, such as HVAC engineering

  • Receiving digital inputs (alarm/status or pulse counter) and analogue inputs (Ni/Pt1000, U, I, R, pot.) in operational systems

  • Four universal inputs, four analogue outputs and four digital outputs

  • Power supply from modu6**-AS automation station, modu612‑LC IP coupler or modu601‑LC supply module

  • Can be equipped locally with a modu600‑LO operating and indicating unit

Media releases
I/O module for expanding the modulo 6 automation system
I/O module for expanding the modulo 6 automation system
SAUTER expands the modulo 6 system family. A new I/O module called th...
18. September 2024
