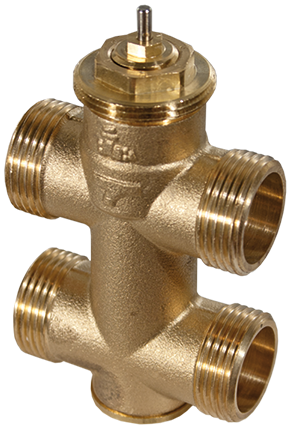

3-way unit valve, PN 16 (el.)
BUT
How energy efficiency is improved
Linear mixture without loss through leakage in the control passage for energy-efficient control
Jellemzők
-
Regulation of fan coil units, air secondary-treatment units, heating zones and two-pipe systems with heat exchanger in combination with AXF 217S, AXM 217(S), AXS 315S and AXT 301 actuators for unit valves
-
Flat-sealing standard version
-
Special model for fan coil units with cast-on bypass T-piece
-
Control passage closed when spindle is pushed in
-
Used as a control valve
-
Valve with male thread as per DIN EN ISO 228-1, class B
-
Valve body made of cast brass
-
Stainless-steel spindle
-
Plug with soft seal made of EPDM for control passage and mixing passage
-
Stuffing box with O-ring seal
-
Water quality as per VDI 2035
