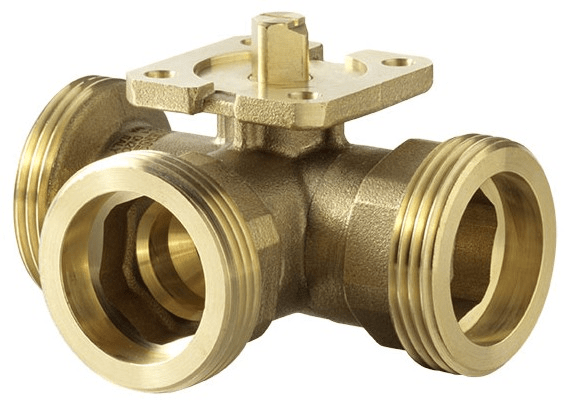

3-way regulating ball valve with male thread, PN 40
BKRA
How energy efficiency is improved
Efficiency means precise control and working with minimum leakage
Jellemzők
-
3-way regulating ball valve for continuous control of cold and hot water in closed circuits
-
As a control unit in combination with valve actuators AKM105(S), 115(S), 115SA and AKF112, 113(S)
-
Control contour in the ball directly integrated
-
Control passage characteristic can be set to linear or quadratic with SUT rotary actuator
-
Low torque due to collar mounted on O-ring
-
Spindle with large sliding surface and PTFE ring
-
Ball valve with male thread as per ISO 228-1 (G x” B)
-
Body made of DZR (dezincification-resistant) cast brass
-
Spindle made of DZR brass with PTFE glide ring
-
Ball made of DZR brass, chrome-plated and polished surface
-
Spindle seal with double O-ring made of EPDM
-
Strainer and screw fitting available as accessories
-
Water quality as per VDI 2035
Adatlapokat
Szerelési útmutató
Nyilatkozat az anyagokról és a környezetről
BKRA: 3-way regulating ball valve with male thread, PN 40
pdf : 1 MB
pdf
Kugelhahn, VKRA/BKRA
pdf : 1 MB
pdf
BKRA: 3-way regulating ball valve with male thread, PN 40
PDF : 226 KB
PDF
Poster valves and actuators - 2023
pdf : 1 MB
pdf
SAUTER ball valve and actuator
pdf : 472 KB
pdf
Valves and actuators
pdf : 3 MB
pdf
