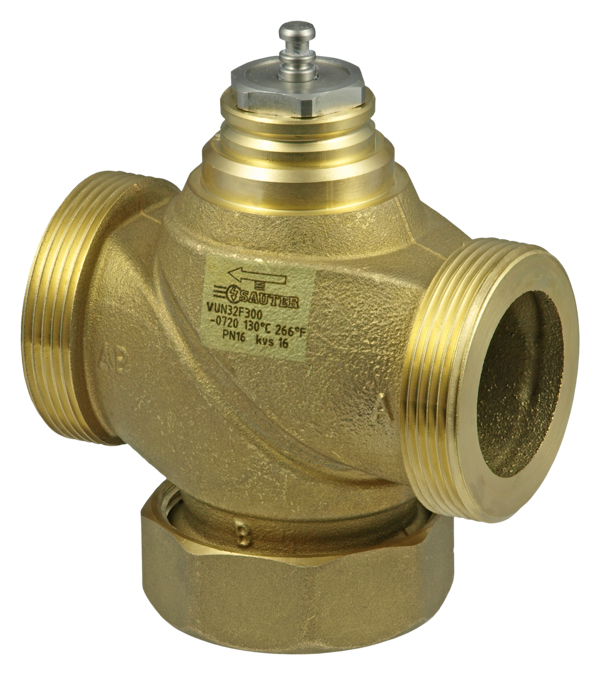

2-way valve with male thread, PN 16

VUN

2-way valve with male thread, PN 16

How energy efficiency is improved

Reliable actuation in efficient control systems


Jellemzők

  • Regulating valve free of silicone grease with male thread (DIN EN ISO 228-1) for cold or hot water in closed and open circuits

  • In combination with valve actuators AVM 105(S), 115(S), 321(S) and AVF 124, 125S as a control unit

  • Equal-percentage (F300) / linear (F200) characteristic, can be set with SUT valve actuators (SAUTER Universal Technology)

  • The valve is closed when the spindle is moved out

  • Closing procedure against the pressure or with the pressure

  • Stainless-steel spindle

  • Valve body and valve seat in dezincification-resistant (DZR) cast brass

  • Plug with glass-fibre-reinforced PTFE sealing ring made of dezincification-resistant (DZR) cast brass

  • Stuffing box with wiper ring made of dezincification-resistant (DZR) cast brass and double O-ring seal made of EPDM
