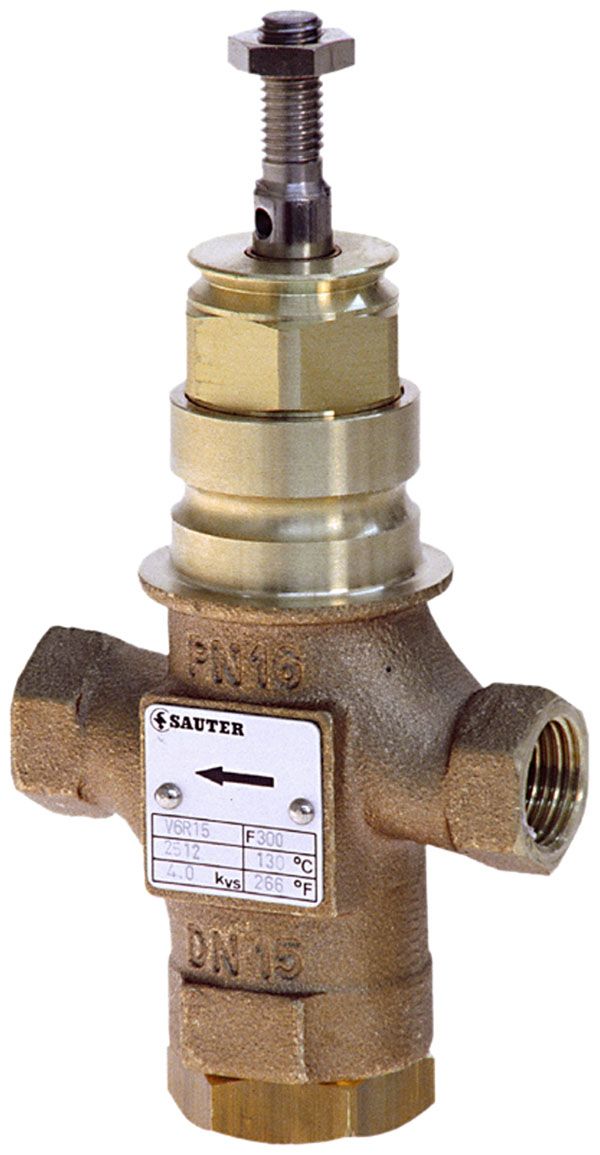

2-way valve with female thread, PN 16 (el.)

V6R

2-way valve with female thread, PN 16 (el.)

How energy efficiency is improved

Efficiency means precise and reliable control


Jellemzők

  • Regulating valve free of silicone grease with female thread DIN EN ISO 228-1 G for the control of cold/hot water in closed and open circuits

  • In combination with valve actuators AVM 322, AVM 322S, AVM 234S, AVF 234S

  • Equal-percentage or linear characteristic, can be set with SUT valve actuators (SAUTER Universal Technology) to linear or equal-percentage

  • Control passage A–AB closed when the spindle is moved out

  • Closing procedure against the pressure or with the pressure

  • Valve body and seat made of gunmetal

  • Stainless-steel spindle

  • Stuffing box made of brass with wiper ring and double O-ring seal made of EPDM
