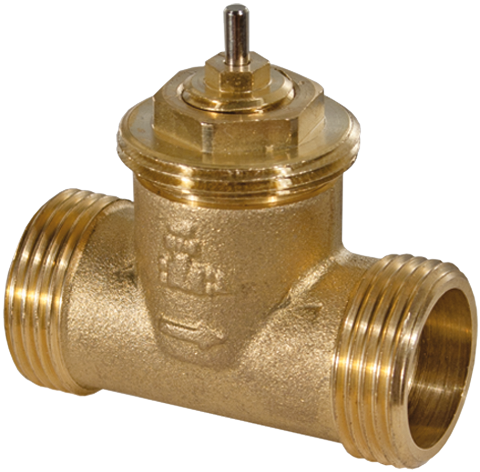

2-way valve, PN 16
VUT
How energy efficiency is improved
Reliable actuation in efficient control systems
Jellemzők
-
Regulation of fan coil units, air secondary-treatment units, heating zones and two-pipe systems with heat exchanger in combination with AXF 217S, AXM 217(S), AXS 315S and AXT 301 actuators for unit valves
-
Flat-sealing standard version
-
Adjustable Kvs value
-
When the spindle is pushed in, the valve is closed
-
Closes against the pressure
-
Valve with male thread as per DIN EN ISO 228-1, class B
-
Valve body made of cast brass
-
Stainless-steel spindle
-
Plug with EPDM soft seal
-
Stuffing box with O-ring seal
-
Water quality as per VDI 2035
Adatlapokat
Szerelési útmutató
Nyilatkozat az anyagokról és a környezetről
VUT: Small through valve, PN 16
pdf : 1 MB
pdf
VUT BUT
pdf : 209 KB
pdf
VUT: Through unit valve for FCU applications
PDF : 88 KB
PDF
Poster valves and actuators - 2023
pdf : 1 MB
pdf
Valves and actuators
pdf : 3 MB
pdf
