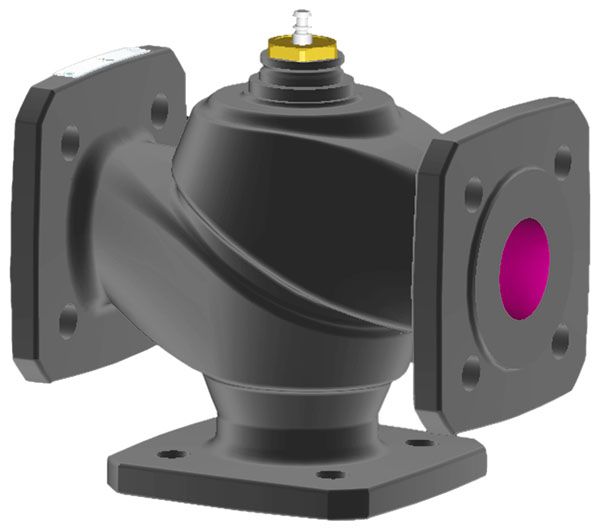

2-way flanged valve, PN 6 (pn.)

VUD

2-way flanged valve, PN 6 (pn.)

How energy efficiency is improved

Efficient use in continuous control systems


Jellemzők

  • Continuous control of cold and hot water in closed circuits

  • Water quality as per VDI 2035

  • In combination with AVP 242 valve actuators as a control unit

  • Not suitable for steam or drinking water

  • Valve with flange connection as per EN 1092-2, seal form B

  • Regulating valve, free of silicone grease, painted black

  • The valve is closed when the spindle is moved out

  • Closing procedure against the pressure

  • Valve body and seat made of grey cast iron

  • Stainless-steel spindle

  • Plug made of brass with glass-fibre reinforced PTFE sealing ring

  • Stuffing box made of brass with wiper ring and double O-ring seal made of EPDM
