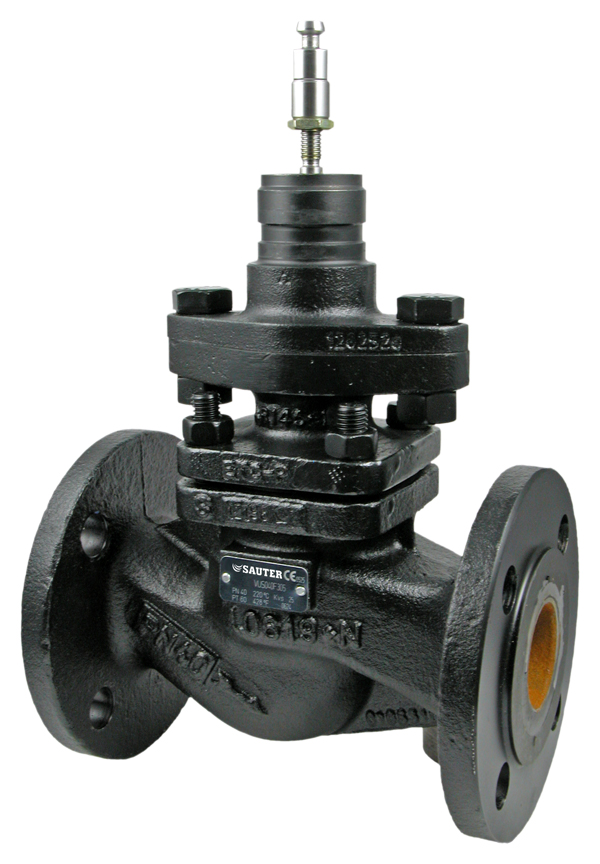

2-way flanged valve, PN 40 (el.)
VUS
How energy efficiency is improved
Efficiency means precise and reliable control
Jellemzők
-
Continuous control of cold, warm and hot water in closed circuits, and of steam
-
In combination with valve actuators AVM 322(S), AVM 234S and AVF 234S as control unit
-
Water quality as per VDI 2035
-
Not suitable for drinking water
-
Valve with flange connection as per EN 1092-2, seal form B
-
Regulating valve, free of silicone grease, matt black
-
Equal-percentage characteristic, can be set with SUT valve actuators to linear or quadratic
-
The valve is closed when the spindle is moved in. Closing procedure only against the pressure
-
Valve body made of cast steel; spindle, seat and plug of stainless steel
-
Maintenance-free stuffing box, made of stainless steel, with spring-loaded PTFE washer up to 220 °C, with graphite seal up to 260 °C
