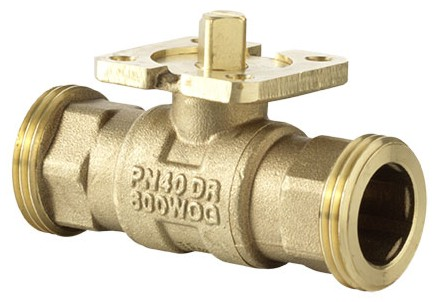

2-way cut-off ball valve with male thread, PN 40
VKAA
How energy efficiency is improved
Precise cut-off with minimum leakage
Jellemzők
-
2-way cut-off ball valve for use in closed circuits in heating, ventilation and air conditioning systems
-
As a cut-off device and control unit for 2-point control in combination with valve actuators AKM 105(S), 115(S), 115SA and AKF 112, 113(S)
-
Fast changeover in six seconds with the AKM115SF152 valve actuator
-
Low torque due to collar mounted on O-ring
-
Ball valve with male thread as per ISO 228-1 (G x” B)
-
Body made of dezincification-resistant cast brass
-
Ball made of dezincification-resistant brass, chrome-plated and polished surface
-
Strainer and screw fitting available as accessories
-
Water quality as per VDI 2035
Adatlapokat
Szerelési útmutató
Nyilatkozat az anyagokról és a környezetről
VKAA: 2-way cut-off ball valve with male thread, PN 40
pdf : 1 MB
pdf
Kugelhahn, VKAA/BKTA
pdf : 1 MB
pdf
VKAA: 2-way cut-off ball valve with male thread, PN 40
PDF : 225 KB
PDF
Poster valves and actuators - 2023
pdf : 1 MB
pdf
SAUTER ball valve and actuator
pdf : 472 KB
pdf
Valves and actuators
pdf : 3 MB
pdf
